ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM

ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM

MOQ: 1
prezzo: Negoziabile
Imballaggio standard: custodia in compensato
Periodo di consegna: 20 giorni
Metodo di pagamento: T/T
Capacità di approvvigionamento: 100 set al mese
Informazione dettagliata
Luogo di origine
Cina
Marca
Sinuo
Certificazione
Calibration Certificate (Cost Additional)
Numero di modello
SN2314B
Norma applicata:
ASTM D-412
Colpo di punzonatura:
≥120-150MM
Dimensione del banco da lavoro:
260*300 mm
Metodo di foratura:
Controllo elettrico
Peso:
circa 50kg
Pressione di esercizio:
2T
Descrizione del prodotto



ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM


Product Overview:



The dumbbell test piece punching machine conforms to ASTM D-412, IEC 60227-1 Table 1

Reference No.1.1,1.2 (IEC 60811-401 and 501), Table 1 IEC 60811-1-1 Figure 12~15, etc.

It can be equip with various dumbbell dies according to the needs for cutting piece (please note that the dumbbell dies are not included in this machine).





Technical Specifications:



1.Punching stroke: ≥120-150MM (factory adjustment of about 120MM)

2.Workbench size: 260*300MM

3. Punching method: electric control

4.Overall dimensions: about 500*550*550MM

5.Weight: about 50KG

6.Working pressure: 2T

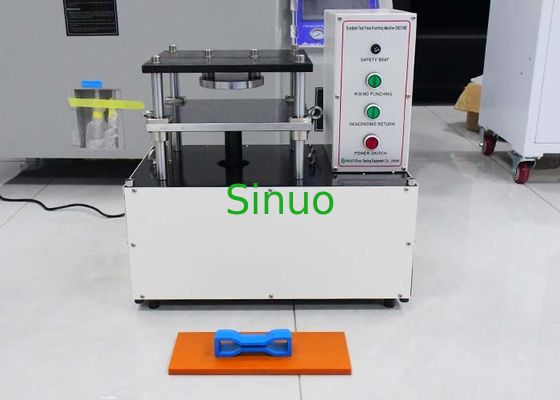

ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM 0



ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM 1



ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM 2

prodotti
Dettagli dei prodotti
ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM
MOQ: 1
prezzo: Negoziabile
Imballaggio standard: custodia in compensato
Periodo di consegna: 20 giorni
Metodo di pagamento: T/T
Capacità di approvvigionamento: 100 set al mese
Informazione dettagliata
Luogo di origine
Cina
Marca
Sinuo
Certificazione
Calibration Certificate (Cost Additional)
Numero di modello
SN2314B
Norma applicata:
ASTM D-412
Colpo di punzonatura:
≥120-150MM
Dimensione del banco da lavoro:
260*300 mm
Metodo di foratura:
Controllo elettrico
Peso:
circa 50kg
Pressione di esercizio:
2T
Quantità di ordine minimo:
1
Prezzo:
Negoziabile
Imballaggi particolari:
custodia in compensato
Tempi di consegna:
20 giorni
Termini di pagamento:
T/T
Capacità di alimentazione:
100 set al mese
Descrizione del prodotto



ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM


Product Overview:



The dumbbell test piece punching machine conforms to ASTM D-412, IEC 60227-1 Table 1

Reference No.1.1,1.2 (IEC 60811-401 and 501), Table 1 IEC 60811-1-1 Figure 12~15, etc.

It can be equip with various dumbbell dies according to the needs for cutting piece (please note that the dumbbell dies are not included in this machine).





Technical Specifications:



1.Punching stroke: ≥120-150MM (factory adjustment of about 120MM)

2.Workbench size: 260*300MM

3. Punching method: electric control

4.Overall dimensions: about 500*550*550MM

5.Weight: about 50KG

6.Working pressure: 2T



ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM 0



ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM 1



ASTM D-412 Dumbbell Test Piece Punching Machine Punching stroke ≥120-150MM 2
