Name: Video Measuring System With 2D Contour Scanning Direct Point-And-Measure Function
Brand: Sinuo Testing Equipment Co. , Limited
SKU: JVB300H
Availability: InStock

MOQ:	1
prezzo:	Customized
Imballaggio standard:	custodia in compensato
Periodo di consegna:	30 giorni
Metodo di pagamento:	T/T
Capacità di approvvigionamento:	50 set al mese

Dettagli Informazioni

Descrizione del prodotto

Informazione dettagliata

Luogo di origine

Cina

Marca

Sinuo

Certificazione

Calibration Certificate (Cost Additional)

Numero di modello

JVB300H

Corso di misura:

300×200×200 mm

Dimensioni complessive:

1200×700×1540mm

carico della tavola:

30 kg

Modalità operativa:

Manuale

Ingrandimento:

Ottico 0,7×–4,5×

Software di misurazione:

Misurazione 2D

Scala lineare:

Scala ad alta precisione da 0,5 µm

Precisione:

(2,0 + L/200) µm

Descrizione del prodotto

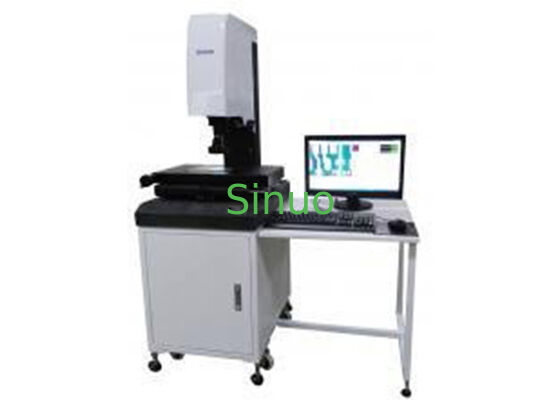

Video Measuring System With 2D Contour Scanning Direct Point-And-Measure Function

Product Information:

The JVB300H Video Measuring System is a high-accuracy, granite-based 2D vision metrology instrument designed for precise dimensional inspection, contour measurement, and quality control of complex components. It is widely used in precision electronics, connectors, tooling, metal parts, injection molding, semiconductors, automotive components, laboratories, and industrial metrology departments.

Product Features:

High-hardness, high-precision granite base and column, ensuring outstanding stability and long-term durability.

Adjustable LED surface light and contour light, providing uniform illumination with low heat generation.

Continuous zoom lens enables real-time magnification adjustment during measurement.

X/Y axes adopt linear guide rail and slider structure, improving rigidity and repeatability.

Integrated graphic report output, allowing quick export of inspection results.

Equipped with laser locator to accurately indicate measurement position.

Software: OVM standard version—simple, intuitive, and easy to operate.

Applications:

The JVB300H efficiently measures contours, surface features, dimensions, angles, and positional relationships of complex precision components.
It is suitable for industries such as:

Electronics

Instruments & meters

Cables and wiring

Tooling & fixtures

Precision machining

Automotive & aerospace

Semiconductors

Connectors & stamping parts

Plastics and rubber components

Research institutes and metrology centers

Technical Parameters:

Item	Specification
Model	JVB300H
Measurement Travel (X×Y×Z)	300 × 200 × 200 mm
Overall Dimensions	1200 × 700 × 1540 mm
Table Load	30 kg
Operation Mode	Manual (with fast-movement switching)
Magnification	Optical 0.7×–4.5× / Image 28×–180× (customizable)
Measurement Software	Standard 2D measurement software
Power Supply	(110V/220V) ±10%, 50/60 Hz
Linear Scale	0.5 µm high-precision scale
Accuracy	(2.0 + L/200) µm
Repeatability	2 µm
Working Environment	20–25°C; RH 45%–75%
CCD	2.6 MP Color Digital CCD
Lens	High-definition industrial optical lens
Illumination	Contour light + surface light (interchangeable)

Software Overview:

Key Features

Direct point-and-measure function

Basic geometric measurement

Composite element measurement

Form and position tolerance evaluation

Coordinate system setup

2D contour scanning

Output to Word, Excel, CAD formats

Automatic edge detection via mouse click—no need to reposition the worktable

Measurement Capabilities:

Geometric elements: points, lines, circles, arcs, ellipses

Composite calculations: center distance, tangency, midline, perpendicular distances, angle bisectors, intersection points

Form tolerance evaluation: concentricity, roundness, straightness, position, inclination

Coordinate adjustment: translation, rotation, re-establish coordinate system

Data reporting: exportable to office software for analysis and printing
